Creating Bundles

Examples

Before continuing, you may find it helpful to look over our collection of simple example bundles.

Using Yeoman

  1. Use Yeoman and generator-nodecg to generate the beginnings of your new bundle:

    npm install --global yo generator-nodecg
    cd bundles
    mkdir my-first-bundle
    cd my-first-bundle
    yo nodecg

    Answer the prompts one-by-one as they come up.

    • If you wish to access the TypeScript boilerplate, just answer yes to the TypeScript prompt.
    • If you wish to access the React boilerplate, first answer yes to the TypeScript prompt and then also answer yes to the React prompt (we currently have a TypeScript+React template but not a plain JavaScript+React template).
    注記

    If you created the bundle with typescript (plain typescript or react) you have to compile the bundle using npm run build inside the my-first-bundle directory.
    (This is likely your issue if you see something like: Error: my-first-bundle has a "nodecg.dashboardPanels" property in its package.json, but no "dashboard" folder when trying to start nodecg)

  2. If you generated your bundle with TypeScript, you can use the "dev" script to start NodeCG, automatically re-compile your code when it changes, and also automatically restart NodeCG when specifically server-side code changes (such as your extension):

    # From the root of your new bundle's folder
    npm run dev

    Else, you can start NodeCG the old-fashioned way with nodecg-cli:

    cd ../..
    nodecg start
    注記

    When running NodeCG in production, Docker or pm2 are recommended.

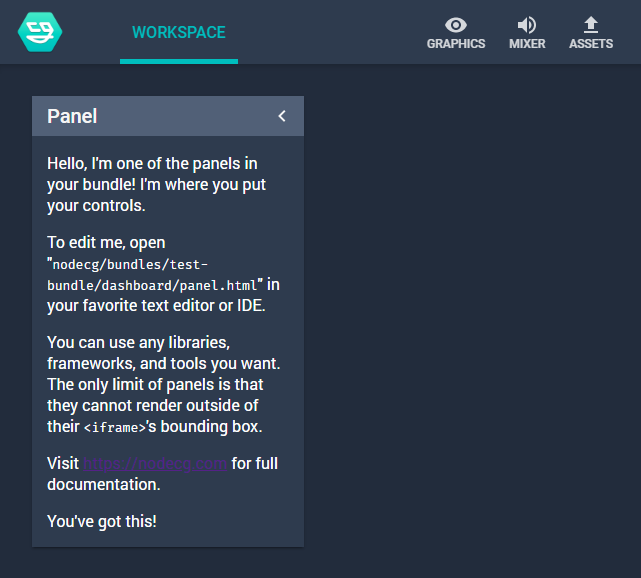

  3. Open the NodeCG Dashboard, which will be located at http://localhost:9090 by default. You should see a page like this:

    Dashboard Screenshot

  4. That's it! You can click the "Graphics" button in the top right to see a list of graphics in your installed bundles.

If you have more questions, want further guidance, or would just like to hang out with other NodeCG devs, join our Discord server!
